Maximum efficiency, minimum cost

Equip yourself with an extraordinary upgrade in fire clip design that delivers major benefits in efficiency, safety and value for money.

Perfected through years of development, this exceptional innovation looks simple – and it is. Expertly designed to save time, money and lives, this remarkable evolution of a vital building component can help you make every job neater and more effective than ever.

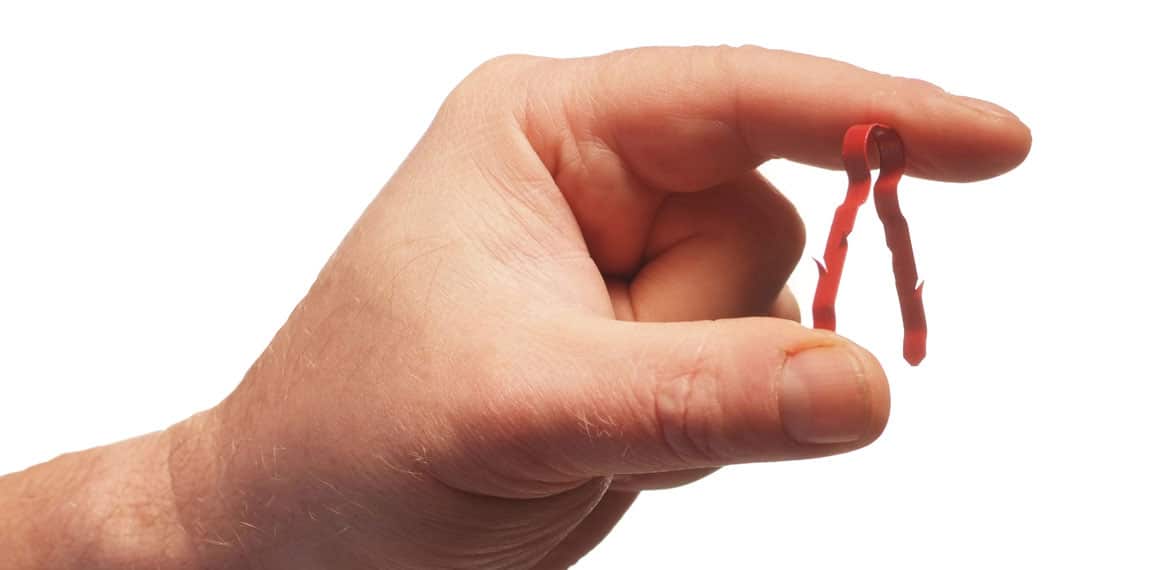

About the LINIAN Fire Clip

REASONS TO START USING LINIAN FIRE CLIPS NOW

  • Life saver – Meets recommendations for Fire Rated Cable Fixings in Escape Routes BS7671 Amendment 3 and BS7671 18th Edition 2018
  • Fast – 70% quicker to install than traditional methods
  • Cost effective – saves money on labour
  • Unique single component design – easy installation
  • Professional finish easily achieved – neat and tidy
  • No screws, nails, washers or screwdrivers required
  • Reliable – maintains integrity longer
  • Tested in accordance with BSEN50200 PH120 Classification (120 minute)
  • Tested in accordance with DIN 4102-12 E90 Classification (90 minute)
  • Smoke emission tested to London Underground Standard
  • >1000°C melting point
  • Resist tensile loads of 244N
  • Salt spray tested to 500 hours
  • Compliant with the requirements of BS 8519:2010
Download Leaflet

What is the tensile load of the LINIAN Fire Clip?

(S) Standard Cable  (E) Enhanced Cable
Cable Size (to suit Soft Skin Cabling) Recommended LINIAN Fire Clip Size & Part No
Description Diameter Part Number Description Colours Available
1mm 2 Core (S) 7.2mm 1LC608 6-8mm Single LINIAN Fire Clip Red | Black | White
1.5mm 2 Core (S) 7.9mm 1LC608 6-8mm Single LINIAN Fire Clip Red | Black | White
2.5mm 2 Core (S) 9.5mm 1LC911 9-11mm Single LINIAN Fire Clip Red | Black | White
4mm 2 Core (S) 12mm 1LC911 9-11mm Single LINIAN Fire Clip Red | Black | White
1mm 2 Core (S) X2 14.4mm 1LC682 6-8mm Double LINIAN Fire Clip Red | Black | White
1.5mm 2 Core (S) X2 15.8mm 1LC682 6-8mm Double LINIAN Fire Clip Red | Black | White
2.5mm 2 Core (S) X2 19mm 1LC9112 9-11mm Double LINIAN Fire Clip Red | Black | White
4mm 2 Core (S) X2 24mm 1LC9112 9-11mm Double LINIAN Fire Clip Red | Black | White
1mm 3 Core (S) 7.8mm 1LC608 6-8mm Double LINIAN Fire Clip Red | Black | White
1.5mm 3 Core (S) 8.3mm 1LC911 9-11mm Single LINIAN Fire Clip Red | Black | White
2.5mm 3 Core (S) 10.5mm 1LC911 9-11mm Single LINIAN Fire Clip Red | Black | White
1mm 3 Core (S) X2 15.6mm 1LC682 9-11mm Double LINIAN Fire Clip Red | Black | White
1.5mm 3 Core (S) X2 16.6mm 1LC9112 9-11mm Double LINIAN Fire Clip Red | Black | White
2.5mm 3 Core (S) X2 21mm 1LC9112 9-11mm Double LINIAN Fire Clip Red | Black | White
1mm  4 Core (S) 8.4mm 1LC911 9-11mm Single LINIAN Fire Clip Red | Black | White
1.5mm 4 Core (S) 10mm 1LC911 9-11mm Single LINIAN Fire Clip Red | Black | White
1mm  4 Core (S) x2 16.8mm 1LC9112 9-11mm Double LINIAN Fire Clip Red | Black | White
1.5mm 4 Core (S) x2 20mm 1LC9112 9-11mm Double LINIAN Fire Clip Red | Black | White
1.5mm 2 Core (E) 9.5mm 1LC911 9-11mm Single LINIAN Fire Clip Red | Black | White
2.5mm 2 Core (E) 10.5mm 1LC911 9-11mm Single LINIAN Fire Clip Red | Black | White
1.5mm 2 Core (E) 19mm 1LC9112 9-11mm Double LINIAN Fire Clip Red | Black | White
2.5mm 2 Core (E) 21mm 1LC9112 9-11mm Double LINIAN Fire Clip Red | Black | White



Cable Size (to suit Soft Skin Cabling) Recommended LINIAN Fire Clip Size & Part No
Description Diameter Part Number Description Colours Available
1mm 2 Core (S) 7.2mm 1LC608 6-8mm Single LINIAN Fire Clip Red | Black | White
1.5mm 2 Core (S) 7.9mm 1LC608 6-8mm Single LINIAN Fire Clip Red | Black | White
2.5mm 2 Core (S) 9.5mm 1LC911 9-11mm Single LINIAN Fire Clip Red | Black | White
4mm 2 Core (S) 12mm 1LC911 9-11mm Single LINIAN Fire Clip Red | Black | White
1mm 2 Core (S) X2 14.4mm 1LC682 6-8mm Double LINIAN Fire Clip Red | Black | White
1.5mm 2 Core (S) X2 15.8mm 1LC682 6-8mm Double LINIAN Fire Clip Red | Black | White
2.5mm 2 Core (S) X2 19mm 1LC9112 9-11mm Double LINIAN Fire Clip Red | Black | White
4mm 2 Core (S) X2 24mm 1LC9112 9-11mm Double LINIAN Fire Clip Red | Black | White
1mm 3 Core (S) 7.8mm 1LC608 6-8mm Double LINIAN Fire Clip Red | Black | White
1.5mm 3 Core (S) 8.3mm 1LC911 9-11mm Single LINIAN Fire Clip Red | Black | White
2.5mm 3 Core (S) 10.5mm 1LC911 9-11mm Single LINIAN Fire Clip Red | Black | White
1mm 3 Core (S) X2 15.6mm 1LC682 9-11mm Double LINIAN Fire Clip Red | Black | White
1.5mm 3 Core (S) X2 16.6mm 1LC9112 9-11mm Double LINIAN Fire Clip Red | Black | White
2.5mm 3 Core (S) X2 21mm 1LC9112 9-11mm Double LINIAN Fire Clip Red | Black | White
1mm  4 Core (S) 8.4mm 1LC911 9-11mm Single LINIAN Fire Clip Red | Black | White
1.5mm 4 Core (S) 10mm 1LC911 9-11mm Single LINIAN Fire Clip Red | Black | White
1mm  4 Core (S) x2 16.8mm 1LC9112 9-11mm Double LINIAN Fire Clip Red | Black | White
1.5mm 4 Core (S) x2 20mm 1LC9112 9-11mm Double LINIAN Fire Clip Red | Black | White
1.5mm 2 Core (E) 9.5mm 1LC911 9-11mm Single LINIAN Fire Clip Red | Black | White
2.5mm 2 Core (E) 10.5mm 1LC911 9-11mm Single LINIAN Fire Clip Red | Black | White
1.5mm 2 Core (E) 19mm 1LC9112 9-11mm Double LINIAN Fire Clip Red | Black | White
2.5mm 2 Core (E) 21mm 1LC9112 9-11mm Double LINIAN Fire Clip Red | Black | White
Download Data Sheet

Removing a LINIAN Fire Clip
